Infotainment solution
SisLink is an integrated infotainment solution for self-sufficient facilities in high alpine environments such as ropeway cabins: rugged design, energy management, communication, and smart functions.
Energy
Self-sufficient energy management with battery, solar panel, and integrated charge controller for unlimited runtime.
Communication
Free-free LoRa wireless connection for simpler applications. Broadband communication via 5G and WiFi for more demanding applications.
Features
Smart, integrated functionality for audio, video, lighting, and signal processing. All in one product.
All features from SisLink at a glance

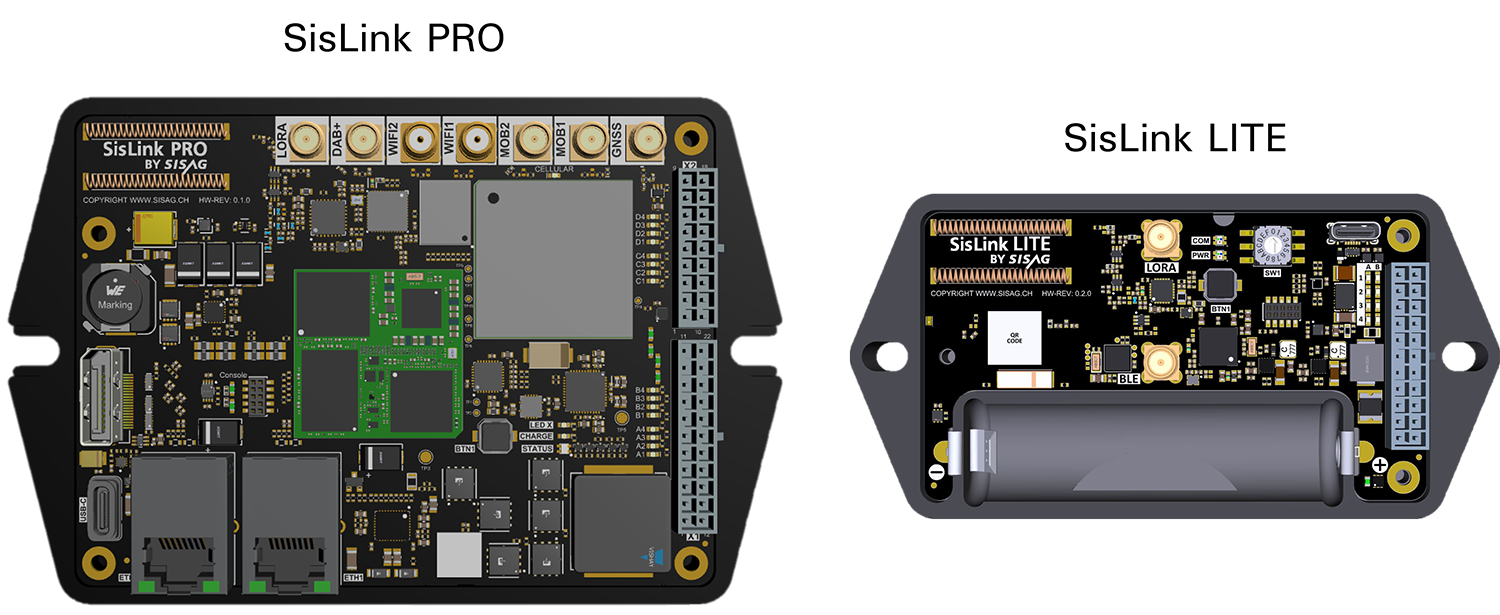

Product Variants

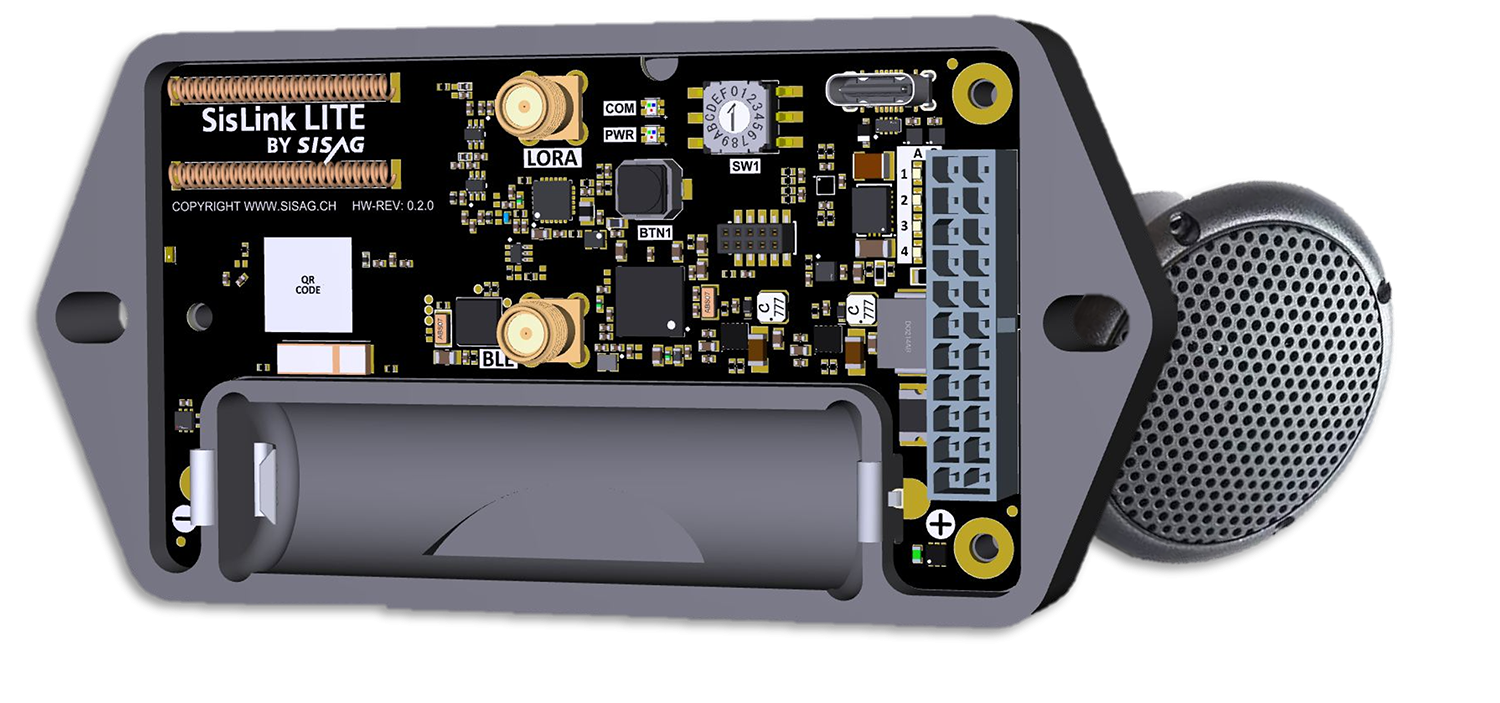

Affordable product For simple applications without high energy requirements. Fee-free communication via LORA radio for playing audio files and controlling inputs and outputs, as well as for RGB LED lighting. Power supplied by integrated battery and highly efficient solar charge controller.
Highly integrated and powerful product for demanding applications. Broadband communication via 5G, WiFi, and Bluetooth. As a solution for intercoms, video surveillance, information screens, and control of inputs and outputs with high performance, also for RGB LED lighting. Power supplied by external battery and powerful solar charge controller.
Energy
Integrated solar battery charge controller, ideally suited to the product variants. LITE version with highly efficient controller, which allows the necessary energy to be stored in the battery even from smaller solar panels (2-5W) with indirect irradiation. PRO version with high-performance controller, which allows high power from larger solar panels (200-300W) to be stored.
LITE version with integrated battery (standard 18650) and PRO version with external 12V standard battery.
Communication
Fee-free, wide-area narrowband communication for small amounts of data. Ideal for playing audio files, controlling inputs and outputs, and transmitting energy and status information. Central gateway antenna with a transmission radius of up to 6 km for an entire area.
Powerful broadband communication via WiFi or 5G for large amounts of data. Ideal for implementing video surveillance, intercom systems (SIP) or for playing information screens.
Audio
Playback of audio files (“MP3 player”) for emergency announcements (instead of route announcements) or for general passenger information/marketing announcements.
Integrated SIP client for two-way communication and announcements via the integrated loudspeaker and microphone connection.
Integrated DAB+ radio receiver allows radio stations to be played via the speaker output.
Speaker driver for 20W speakers integrated. PRO version with 2x20W stereo.
Video
IP cameras can be connected via the Ethernet ports with integrated POE power supply and integrated into a higher-level video system.
Standard screens can be used for guest information or other applications via a DisplayPort/HDMI connection.
Light
The integrated RGB LED drivers allow white or colored LED lights to be controlled directly for cabin lighting or ambient lighting.
FlexIO
Configurable inputs and outputs, which also feature PWM and counter functions.

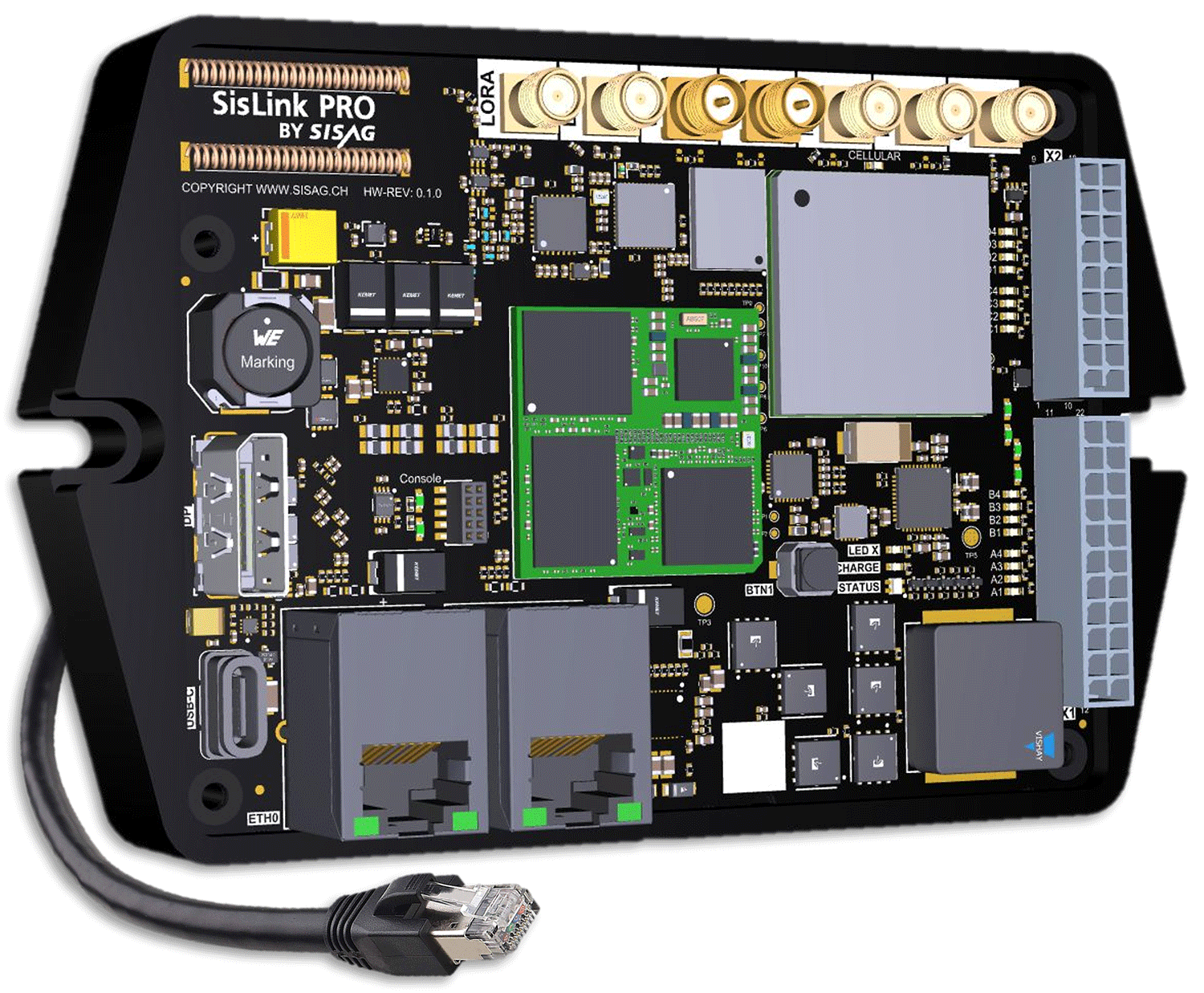

Ethernet
Network connection with integrated POE power supply for connecting a wide variety of network-compatible devices such as IP cameras.
Applications
Extensive and customized applications can be developed and installed.
Robust design
Very robust design with fully encapsulated electronics in a durable polyamide housing.
Protective coating and fully encapsulated electronics, protected against moisture and frost. Suitable for high alpine applications with temperatures ranging from -40 to +85°C.
Developed and manufactured in Switzerland (Swiss Made)
